| Typical Models - F-11K Series | |||
 |
 |
 |
 |

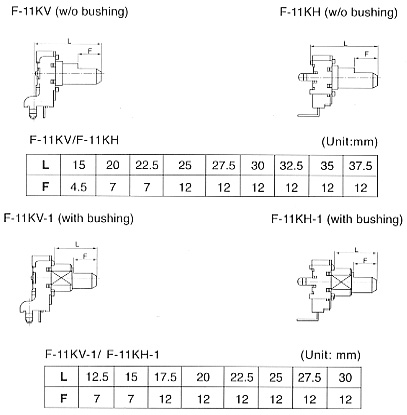

| F-11KH Single - No Switch Center Detent Optional |
F-11KH1 Single - No Switch Center Detent Optional |
F-11KV Single - No Switch Center Detent Optional |
F-11KV1 Single - No Switch Center Detent Optional |
 |
 |
 |
 |
| F-11KGH Dual - No Switch Center Detent Optional |
F-11KGH1 Dual - No Switch Center Detent Optional |
F-11KGV Dual - No Switch Center Detent Optional |
F-11KGV1 Dual - No Switch Center Detent Optional |
Click
to Download
F-11K catalog (145kb)
| F-11K Series | |
| Electrical Characteristics | |
| Total Resistance (Tolerance) | 500 ohm - 1 meg ohm (±20%) |
| Resistance Tapers Available | A, B, C, D |
| Max. Operation Voltage | AC50V, DC20V |
| Rated Power | 0.05W |
| Sliding Noise | Less than 100 mV |
| Insulation Resistance | More than 100 M ohm at DC 500 V |
| Withstand Voltage | 1 minute at AC 500 V |
| Residual Resistance | Term. 1 - 2: Less than 20 ohm Term. 2 - 3: Less than 20 ohm |
| Mechanical Characteristics | |
| Total Rotational Angle | 300º ± 10º |
| Rotational Torque | 20 gf.cm - 200 gf.cm |
| Rotational Stopper Strength | 3.0 Kgf.cm Min. |
| Push-Pull Strength | 8.0 Kg.f Min. |
| Durability (Rotational Life) | 10,000 Cycles |
| Some models in series may deviate from above specifications. Please see individual data sheets. Dimensions and specifications subject to change without notice. | |
