Potentiometers

Home > Miscellaneous, Clearance and Overstock > Potentiometers

	*THUMBWHEEL POTENTIOMETERS*
	Thumbwheel Potentiometer Without Switch - P/N F-12NPT1 (PC pins) 1 meg ohms linear taper comes with 20mm diameter knob. Made in Taiwan.

	Thumbwheel Potentiometer Without Switch - P/N F-16N (solder lugs) 10K ohms linear taper comes with 20mm diameter knob. Made in Taiwan.

	Thumbwheel Potentiometer Without Switch - P/N F-16NH (PC pins) 1 meg ohms linear taper. Made in Taiwan.

	Thumbwheel Potentiometer Without Switch - P/N F-16NH1 (PC pins) 10K ohms linear taper with knob #12357-1. Made in Taiwan.

	Thumbwheel Potentiometer Without Switch - P/N F-16NPG (solder lugs) 1K ohms linear taper. Made in Taiwan.

	Thumbwheel Potentiometer Without Switch - P/N F-16NPG (solder lugs) 5K ohms linear taper. Made in Taiwan.

	Thumbwheel Potentiometer Without Switch - P/N F-16NPG1 (PC pins) 500K ohms audio taper comes with knob #12357-6. Made in Taiwan.

	Thumbwheel Potentiometer With Switch - P/N F-16SP4 (PC pins) 50K ohms audio taper. Made in Taiwan.

	*ROTARY POTENTIOMETERS*
	Rotary Potentiometer 16MM Diameter No Switch P/N F-16KG3 (PC pins) 100K ohms audio taper with center tap. 15mm knurled shaft. Made in Taiwan.

	Rotary Potentiometer 16MM Diameter No Switch P/N F-16K6 (PC pins) 5K ohms linear taper. 20mm round shaft. 11 Detents. Made in Taiwan.

	Rotary Potentiometer 17MM Diameter No Switch P/N F-17N (Solder Lugs) 50K ohms linear taper. 15mm flatted shaft. Made in Taiwan.

	Rotary Potentiometer 17MM Diameter No Switch P/N F-17N2 (PC pins) 1 Meg ohms linear taper. 15 mm flatted shaft. Made in Taiwan.

	Rotary Potentiometer 17MM Diameter No Switch P/N F-17NPD (PC pins) 5K ohms linear taper. 20mm round shaft. Made in Taiwan.

	Rotary Potentiometer 17MM Diameter No Switch P/N F-17NPD (PC pins) 1 meg ohms linear taper. 20mm round shaft. Made in Taiwan.

	Rotary Potentiometer 17MM Diameter No Switch P/N F-17NPD (PC pins) 2 meg ohms linear taper. 20mm round shaft. Made in Taiwan.

	Rotary Potentiometer 17MM Diameter With Switch P/N F-17S2 (PC pins) 10K ohms audio taper.15 mm flatted shaft. Switch SPST 12VDC 1A. Made in Taiwan.

	Rotary Potentiometer 17MM Diameter With Switch P/N F-17SP (PC pins) 10K ohms linear taper. 25mm knurled shaft. Switch SPST 12VDC 1A. Made in Taiwan.

	Rotary Potentiometer 17MM Diameter With Switch P/N F-17SP (PC pins) 1 meg ohms audio taper. 15mm knurled shaft. Switch SPST 12VDC 1A. Made in Taiwan.

	Rotary Potentiometer 24MM Diameter No Switch Dual P/N F-24KGNP (Solder Lugs) 10K ohms linear taper. 20mm knurled shaft. Made in Japan.

	*SLIDE POTENTIOMETERS*

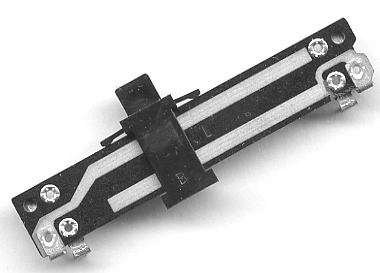

	Slide Potentiometer - 20MM Travel Carbon film 100K ohms linear taper (B taper) 15mm metal shaft panel mount 31mm between screw holes with solder lugs. Made in Taiwan.

	Slide Potentiometer - 20MM Travel Carbon film 10K ohms linear taper (B taper) 15mm insulated plastic shaft panel mount 31mm between screw holes with solder lugs. Made in Taiwan.

	Slide Potentiometer - 30MM Travel Carbon film dual 50K ohms audio taper (A taper) 4mm insulated plastic shaft PCB mount with PC pins. Made in Taiwan.

	Slide Potentiometer - 30MM Travel Carbon film 100K ohms audio taper (A taper) 15mm metal shaft panel mount 41mm between screw holes with solder lugs. Made in Taiwan.

	Slide Potentiometer - 60MM Travel Conductive Plastic 100K ohms linear taper (B taper) 15mm shaft panel mount 80mm between screw holes with solder lugs. Made in Japan.

	*POTENTIOMETER KNOBS*
	Knob for Slide Potentiometer Chrome painted plastic, white line. 15mm x 11mm x 12mm. Also will fit slide or toggle switch. Made in Taiwan.
