Industrial Quality Dynamic Microphone Elements
Model Dimensions  Sensitivity
(3dB)
 Output
Impedance
(ohms)*
Directionality Wt.
(gms)
Spec. Photo
Dia.
 0.3
(MM)
Thick.
 0.5
(MM)
DU-2-150 19.0 15.8 -64  15015% Omni 14  Spec. Photo
DU-2-600 19.0 15.8 -64  60015% Omni 14  Spec. Photo
DU-3 23.0 11.5 -86  20015% Omni 13  Spec. Photo
DU-7 32.0 18.0 -70 50015% Omni 18 Spec Photo

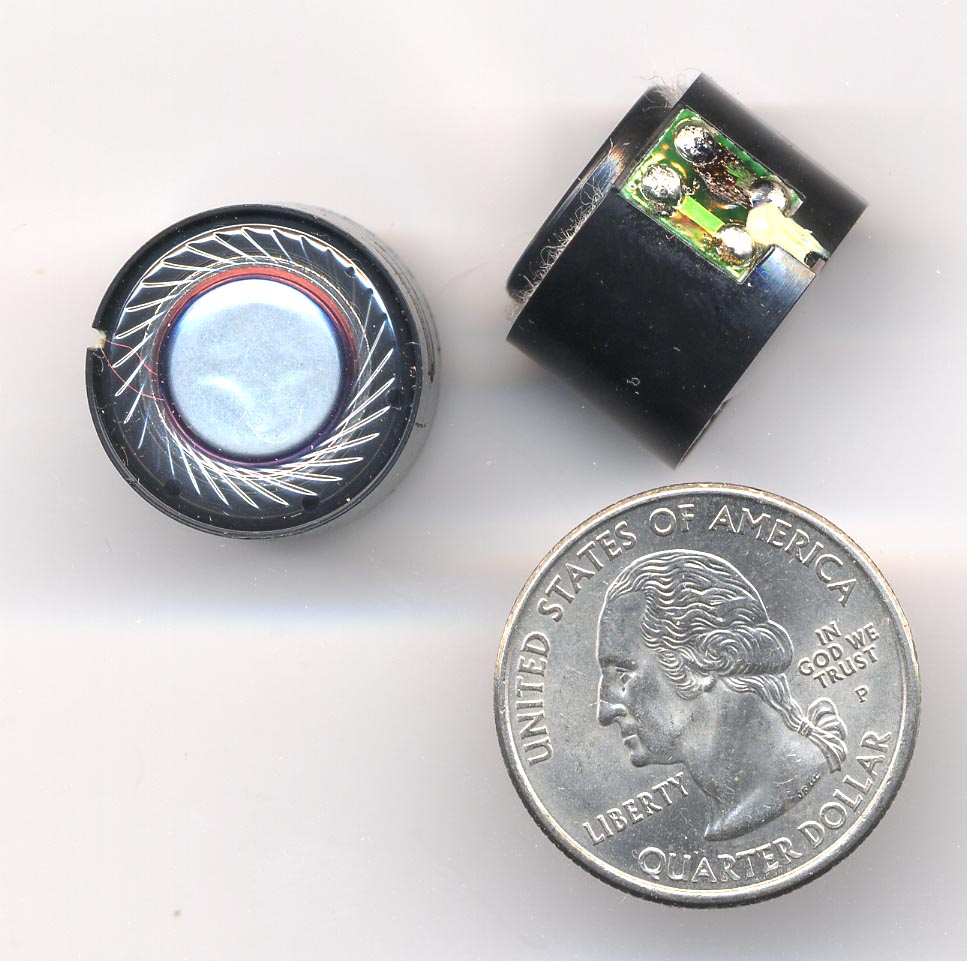

DU-16 19.0 14.2 -79 68015% Omni 14 Spec Photo

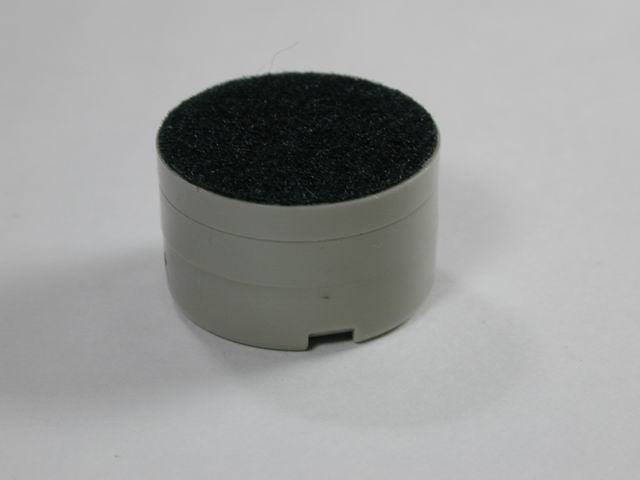

UDU-19RKY-2 19.0 11.5 -83  230+20% -10% Uni Spec. Photo
UDU-25C 25.0 39 -55 60015% Uni 22 Spec. Photo
UDU-28HA 27.0 57.2 -52 68020% Uni 50 Spec. Photo
MU-44B 28.5 32.5 -52 60015% Uni 30 Spec. Photo
MU-44D 28.5 32.5 -58 20015% Hyper-Uni 30 Spec. Photo

Typical Applications
bulletCB Radio
bullet Walkie Talkie Microphone
bulletTelephone
bulletHeadset
bulletProfessional Audio Microphone
* Please contact us if you have special impedance requirements.
Specifications & dimensions subject to change without notice.
