Features
bullet12 or 24 VDC
bulletSolid, Pulse or Dual Tone
bullet3.2 or 2.0/3.2KHz Resonant Frequency
bulletLoud Output
bulletLow Current

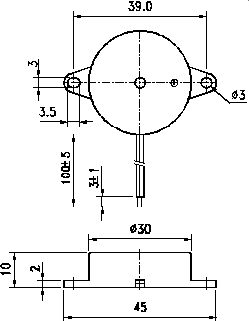

bulletPCB Mount (15MM or 17MM Pitch) or Screw Mount with Wire Leads
Model Oper.
Voltage
 Range
(VDC)		 Rated
Voltage
(VDC)		 Max.
 Current
at Rated
Voltage
 (mA)		 Res.
Freq.
(KHz)±
0.5		 Min. SPL
@ Rated
Voltage
 (dBA/
30cm)		 Pulse Rate
@ Rated
 Voltage
(Pulses/
Second)		 Tone Terminal
PB-116S12 3 - 28 12 20 3.2  90 NA Single Leads/Pins
PB-116PF12 3 - 28 12 20 3.2  90 1 / 3 Pulse Leads/Pins
PB-116PS12 3 - 28 12 20 3.2  90 .6 / 2 Pulse Leads/Pins
PB-116D12 6 - 15 12 20 2.0/3.2 90 1 / 5 Dual Leads/Pins
PB-116D24 16 - 28 24 20 2.0/3.2 90 1 / 5 Dual Leads/Pins
Specifications and dimensions subject to change without notice.
